1. Eltra GMBH combustion-based Elemental Analyzers  with both induction & resistance furnaces model cs-d:

ELTRA ,Germany is the world's leading producer of Elemental Analyzers principally for inorganic matrices , solids etc .ELTRA, the trusted brand, is leading the world again with her launch of the new  & more advanced Elementrac series : Elementrac CS-i, Elementrac CS-d & Elementrac-onp !

                                                                                               ELTRA model CS-d DUAL- FURNACE CARBON/ SULFUR ANALYZER                                                                      iDEAL FOR BOTH INORGANIC & ORGANIC MATRICES:



ELTRA's ELEMENTRAC CS-d is the only analyzer in the market for determination of carbon and sulfur  in organic as well as inorganic samples. For this purpose, the ELEMENTRAC CS-d is equipped with both an induction and a resistance furnace (ELTRA Dual Furnace Technology), covering the full range of carbon and sulfur analysis.

Up to four highly sensitive infrared (IR) cells allow for precise measurement of both high and low carbon and sulfur concentrations in only one analysis. The measuring range of each cell may be adapted to the user's specific requirements to ensure optimum measurement conditions for each application.

The ELEMENTRAC CS-d is supplied with the comprehensive and user-friendly ELEMENTS software which features statistics, groupings, reports, diagnosis tools and many additional functions.

APPLICATION EXAMPLES

alloys, ashes, carbides, cast iron, cement, ceramics, coal, coke, copper, glass, gypsum, iron, limestone, metals, minerals, oil, ores, plant materials, refractory metals, rubber, sand, soils, steel, titanium, tobacco, ...

PRODUCT ADVANTAGES

  • General:
  • full flexibility due to combined induction and resistance furnace: ELTRA Dual Furnace (EDF) Technology
  • rapid, precise, accurate and reliable carbon & sulfur analysis in inorganic and organic samples
  • up to four independent infrared cells with flexible measuring ranges
  • gold IR path allows for increased cell live time for analysis of halogen or acid containig samples
  • simultaneous carbon and sulfur determination with minimal sample preparation
  • low maintenance
  • robust design allows usage in production control and laboratory
  • Induction Furnace:
  • adjustable and rampable induction furnace (0-100%) for optimized combustion of every kind of inorganic samples (maximum temperature above 2,000 °C)
  • precise carbon and sulfur analysis in inorganic samples due to intelligent oxygen supply during inductive combustion
  • optional automatic vacuum cleaning system ensures higher measurement precision
  • heated and easily accessible dust trap allows for improved sulfur detection
  • optimized catalyst reactor permits more accurate carbon detection
  • Resistance Furnace:
  • temperature of resistance furnace adjustable from 600 °C up to 1,550 °C in steps of 1 °C
  • low blank sample port assures reliable low carbon measurement in the resistance furnace
  • XXL balcony for storage of samples
  • ELEMENTS software:
  • comprehensive analysis and diagnosis tools (supporting data and application export, comment fields, and many more)
  • Report Designer
  • LIMS
  • single and multipoint calibration

FEATURES

Measured elementscarbon, sulfur
Samplesinorganic, organic
Furnace alignmenthorizontal (resistance furnace) and vertical (induction furnace)
Sample carrierceramic boats / crucibles
Field of applicationagriculture, chemistry / plastics, coal / power plant, construction materials, engineering / electronics, environment / recycling, geology / mining, glass / ceramics, medicine / pharmaceuticals, steel / metallurgy
Furnacesinduction furnace, above 2,000 °C
resistance furnace (ceramic tube), adjustable up to 1,550 °C (steps of 1 °C)
Detection methodsolid state infrared absorption
Number of IR cells1 - 4
Material of IR pathgold
Typical analysis timeinduction furnace 40 - 50 s
resistance furnace 60 - 120 s
Chemicals requiredmagnesium perchlorate, platinized silica (alternatively copper oxide), sodium hydroxide
Gas requiredcompressed air (4 - 6 bar / 60 - 90 psi)
oxygen 99.5 % pure (2 - 4 bar / 30 - 60 psi)
Power requirements induction furnace230 V, 50/60 Hz, 16 A fuse
Power requirements resistance furnace230 V, 50/60 Hz, 20 A fuse
Dimensions (W x H x D)89 x 84 x 79 cm
Weight~ 200 kg
Required equipmentbalance (resolution 0.0001g), monitor, PC
Optional accessoriesAutoloader for 36 crucibles, carrier gas purification, HTF-540 pre-heating furnace

FUNCTION PRINCIPLE

Operation Carbon / Sulfur Analyzer ELEMENTRAC CS-d

The ELEMENTRAC CS-d utilizes two different furnaces (resistance and induction) which share one detection unit consisting of up to four independent IR cells. Inorganic samples like steel, cast iron, cement are usually processed in the induction furnace of the CS-d. After applying the sample to a ceramic crucible, it is logged in the ELEMENTS software with name and weight. This is followed by adding accelerators like iron and tungsten. The ceramic crucible with sample and accelerator is placed on the pedestal and the measurement is started in the software. All further steps are controlled by the ELEMENTS software; the measured carbon and/or sulfur result is displayed after approx. 50 seconds. One or multiple results can be exported to LIMS or to a report.

Organic samples are usually processed in the resistance furnaces of the CS-d at a defined temperature up to 1,550 C. The samples (such as coal) are weighed in ceramic boats without accelerator. The weight is transferred from the interfaced balance to the PC or can be entered manually. The sample is then placed directly on the balcony in front of the furnace and the measurement can be started. A green LED light indicates when the analyzer is ready for measurement and the ceramic boat with the sample can be introduced into the hot furnace with the help of a stick. The typical analysis time is 60 to 180 seconds, depending on the sample material.

Measuring principle Carbon / Sulfur Analyzer ELEMENTRAC CS-d

Regardless of which furnace is used in the ELEMENTRAC CS-d, the carbon and sulfur in the sample forms gaseous molecules like SO2 and CO2 during combustion. The released amounts of CO2 and SO2 are measured in up to 4 element-selective infrared cells. Usually, two IR cells are used for measuring one gas (CO2 or SO2) to ensure that both very low and very high concentrations are analyzed precise and correctly.

When the induction furnace of the CS-d is used, the carrier gas (oxygen) and the combustion products (CO2, traces of CO, and SO2) are first led through a metallic filter to remove all solid particles. Afterwards, a tube filled with magnesium perchlorate removes traces of water. The dried combustion gas then passes up to two infrared cells for sulfur (SO2) measurement. Afterwards, a heated catalyst (usually platinized silica) oxidizes the traces of carbon monoxide (CO) to CO2 and the SO2 molecules to SO3. The SO3 gas is absorbed by cellulose and the CO2 is measured in up to two element selective IR cells. Finally, the combustion gas is led to the exhaust and the ELEMENTS software calculates the resulting carbon and sulfur concentrations.

Whereas the induction furnace of the ELEMENTRAC CS-d is suitable for analyzing inorganic samples like steel, cast iron and ceramics, the resistance furnace is used for combustion of organic samples like coal, coke or soil. When a coal sample is combusted at temperatures of approx. 1350° C, CO2 and SO2 are released but usually no carbon monoxide (CO) is formed. The combustion gases of the resistance furnace first pass a ceramic filter for absorption of particles, followed by a glass tube with magnesium perchlorate.

After that the dried combustion gases pass the same path as those from the induction furnace. Usually, the catalyst furnace is switched off during usage of the resistance furnace because oxidation of CO is not required.

However, the risk of incomplete combustion and formation of carbon monoxide increases at lower temperatures (~600 °C); in such cases the catalyst furnace may be switched on.

Content may be subject to modifications or corrections.





2. Eltra Carbon Sulfur Analyzer  Model cS-i with Induction furnace for Inorganic matrices:





ELTRA  Model CS-i CARBON/ SULFUR ANALYZER with induction furnace

FOR INORGANIC MATRICES:

The new carbon / sulfur analyzer ELEMENTRAC CS-i was developed for the accurate and safe analysis of carbon and sulfur in inorganic samples. The analyzer is equipped with a powerful induction furnace for sample combustion.

Up to four highly sensitive infrared (IR) cells allow the analyzer to determine both high and low carbon and sulfur concentrations in only one measurement run. The measuring range of each cell may be adapted to the user's specific requirements to ensure optimum measuring conditions for each application.

The analyzer is supplied with the new comprehensive and convenient ELEMENTS software, which features statistics, groupings, reports, diagnosis tools and many additional functions for ELEMENTRAC analyzers.

APPLICATION EXAMPLES

alloys, carbides, cast iron, cement, ceramics, copper, glass, iron, minerals, ores, refractory metals, sand, steel, titanium, ...

PRODUCT ADVANTAGES

  • simultaneous carbon and sulfur determination with minimal sample preparation
  • wide range of inorganic materials can be analyzed
  • freely selectable configuration of each IR cell
  • optional gold IR path for analysis of halogen or acid containing samples
  • control of induction performance provides more precise analysis of samples with low melting temperature
  • powerful (2.2 kW) induction furnace for temperatures above 2,000 °C
  • NEW: automatic vacuum cleaning system ensures higher measurement precision and stability
  • heated and easily accessible dust trap allows for improved sulfur detection
  • optimized catalyst reactor permits more accurate carbon detection
  • NEW: ELEMENTS software with comprehensive analysis and diagnosis tools (supporting data and application export, comment fields, and many more)
  • single and multipoint calibration
  • low maintenance
  • robust design allows usage in production control and laboratory

FEATURES

Measured elementscarbon, sulfur
Samplesinorganic
Furnace alignmentvertical
Sample carrierceramic crucibles
Field of applicationconstruction materials, engineering / electronics, geology / mining, glass / ceramics, steel / metallurgy
Furnaceinduction furnace, above 2,000 °C
Detection methodsolid state infrared absorption
Number of IR cells1 - 4
Material of IR pathaluminum (optional gold)
Typical analysis time40 seconds (nominal)
Chemicals requiredmagnesium perchlorate, platinum-based catalyst, sodium hydroxide
Gas requiredcompressed air (4 bar/ 60 psi)
oxygen 99.5 % pure (2 - 4 bar / 30 - 60 psi)
Power requirements230 V, 50/60 Hz, max. 15 A, 3450 W
Dimensions (W x H x D)52 x 84 x 75 cm
Weight~ 150 kg
Required equipmentbalance (resolution 0.0001g), monitor, PC
Optional accessoriesAutoloader (for 36 crucibles), carrier gas purification, halogen trap, HTF-540 pre-heating furnace, vacuum cleaner

FUNCTION PRINCIPLE

Carbon / Sulfur Analyzer CS-i: Operation

Operating the CS-i is simple and safe. After weighing the sample in a ceramic crucible, the weight is transferred from the interfaced balance to the PC. If required, sample weights can also be entered manually. Then an accelerator (such as iron or tungsten) is added and, after having placed the crucible on the pedestal, the analysis starts. The analysis time is 40 to 50 seconds. The detector signals and instrument parameters are displayed during analysis. Evaluation of the signals and display of the results are done automatically; the data can be transferred to a laboratory information management system (LIMS). The CS-i requires minimum maintenance. The particle filters and chemicals which need to be maintained are easily accessible.

Carbon / Sulfur Analyzer CS-i: Measuring Principle

In the induction furnace the sample is melted in a pure oxygen atmosphere, causing sulfur to react to sulfur dioxide (SO2) and carbon to a mixture of carbon monoxide (CO) and carbon dioxide (CO2). The combustion gases pass through a dust filter and moisture absorber for purification. In the next step the sulfur dioxide is detected in infrared cells. In the CS-i infrared cells with different sensitivities (high/low) can be adapted according to the user’s requirements. Oxidation of both, carbon monoxide to carbon dioxide and sulfur dioxide to sulfur trioxide follow the sulfur measurement. The SO3 gas is removed with cellulose wool; the carbon content is detected by infrared cells which can be individually customized. The ELTRA CS-i analyzer can be equipped with up to 4 independent infrared cells.

Content may be subject to modifications or corrections

Eltra CHS-580 Carbon Hydrogen Sulfur Analyzer:

CHS-580 Carbon Hydrogen Sulfur Analyzer for Organics

ELTRA CHS-580 Analyzer is ideal for the simultaneous determination of carbon, hydrogen and sulfur in organic samples.

Thanks to sample weights of 500 mg and more, even inhomogeneous materials can be reliably analyzed. The temperature of the powerful horizontal resistance furnace with ceramic tube can be set in steps from 1 °C to a maximum of 1,550 °C.

The analyzer can be equipped with up to three  independent infrared cells according to the user‘s requirements, allowing for a great variety of applications.

APPLICATION EXAMPLES

coal, coke, oil, plant materials, rubber, soot, tobacco, waste, ...

PRODUCT ADVANTAGES

  • simultaneous carbon, sulfur and hydrogen determination with minimal sample preparation
  • wide range of organic materials can be analyzed
  • rapid, precise, accurate and reliable element determination
  • resistance furnace can be set up to 1550 °C in steps of 1 °C
  • customized infrared cells provide wide, dynamic measuring range
  • due to gold IR path, increased cell live time for analysis of halogen or acid containig samples
  • powerful software (multilingual, customized display, export of results)
  • single and multipoint calibration
  • low maintenance
  • robust design allows usage in production control and laboratory

FEATURES

Measured elementscarbon, hydrogen, sulfur
Samplesorganic
Furnace alignmenthorizontal
Sample carrierceramic boats
Field of applicationagriculture, biology, chemistry / plastics, coal / power plant, construction materials, environment / recycling, medicine / pharmaceuticals
Furnaceresistance furnace (ceramic tube), adjustable up to 1550 °C (steps of 1 °C)
Detection methodsolid state infrared absorption
Number of IR cells1 - 3
Material of IR pathgold
Typical analysis time60 - 180 s
Chemicals requiredmagnesium perchlorate, sodium hydroxide
Gas requiredoxygen 99.5 % pure (2 - 4 bar / 30 - 60 psi)
Power requirements230 V, 50/60 Hz
max. heat up current 2000 W
Dimensions (W x H x D)55 x 80 x 60 cm
Weight~ 70 kg
Required equipmentbalance (resolution 0.0001g), monitor, PC
Optional accessoriesTIC module, voltage stabilizer 5 KVA

FUNCTION PRINCIPLE

Operation CHS-580

After weighing the sample in a ceramic boat, the weight is transferred from the interfaced balance to the PC. If required, sample weights can also be entered manually. Then the ceramic boat is introduced into the furnace for combustion. The average analysis time is 60 to 180 seconds. The detector signals and instrument parameters are displayed during analysis. Evaluation of the signals and display of the results are done automatically; the data can be transferred to a laboratory information management system (LIMS). The CS-580 requires minimum maintenance. The particle filters and chemicals which need to be maintained are easily accessible.

Measuring Principle CHS-580

In the CHS-580 the sample is burnt in an oxygen atmosphere at temperatures up to 1,550 °C. The furnace temperature can be freely selected in steps of 1 °C. The combustion gasses (CO2, H2O, SO2) coming from the furnace and first pass through a dust filter and then into the heated H2O infrared cell. After the water vapor is chemically absorbed, the dried CO2 and SO2 gas is detected in the additional infrared cells. Depending on the configuration, it is possible to combine up to three infrared cells with different sensitivities.

Content may be subject to modifications or correction

Eltra CHS-580A Helios Carbon Hydrogen Sulfur Analyzer

ELTRA CHS-580A analyzer is  ideal  for the simultaneous determination of carbon, hydogen and sulfur in organic samples.

ELTRA’s 580A analyzers (A = Autoloader) are equipped with an automatic sample loader, allowing for analysis of large numbers of samples without operator intervention. The sample loader is available in two versions to accommodate 36 or 130 crucibles. The CHS-580A is based on the technology of the CHS-580 analyzer and features a vertical resistance furnace with ceramic tube.

The temperature can be set in steps of 1 °C to a maximum of 1,550 °C. Thanks to sample weights of up to 500 mg and more even inhomogeneous materials can be reliably analyzed. The analyzer can be equipped with up to three independent infrared cells according to the user’s requirements, allowing for a great variety of applications.

APPLICATION EXAMPLES

coal, coke, oil, plant materials, rubber, soot, tobacco, waste, ...

PRODUCT ADVANTAGES

  • simultaneous carbon, sulfur and hydrogen determination with minimal sample preparation
  • wide range of organic materials can be analyzed
  • rapid, precise, accurate and reliable element determination
  • resistance furnace can be set up to 1550 °C in steps of 1 °C
  • customized infrared cells provide wide, dynamic measuring range
  • due to gold IR path, increased cell live time for analysis of halogen or acid containig samples
  • powerful software (multilingual, customized display, export of results)
  • single and multipoint calibration
  • low maintenance
  • robust design allows usage in production control and laboratory

FEATURES

Measured elementscarbon, hydrogen, sulfur
Samplesorganic
Furnace alignmentvertical
Sample carrierceramic crucibles
Field of applicationagriculture, biology, chemistry / plastics, coal / power plant, construction materials, environment / recycling, medicine / pharmaceuticals
Furnaceresistance furnace (ceramic tube), adjustable up to 1550 °C (steps of 1 °C)
Detection methodsolid state infrared absorption
Number of IR cells1 - 3
Material of IR pathgold
Typical analysis time60 - 180 s
Chemicals requiredmagnesium perchlorate, sodium hydroxide
Gas requiredoxygen 99.5 % pure (2 - 4 bar / 30 - 60 psi)
compressed air (4 - 6 bar / 60 - 90 psi)
Power requirements230 V, 50/60 Hz
max. heat up current 2000 W
Dimensions (W x H x D)55 x 100 x 60 cm
85 x 35 x 45 cm (Autoloader for 130 crucibles)
Weight~ 90 kg (analyzer)
~ 15 kg (Autoloader for 130 crucibles)
Required equipmentbalance (resolution 0.0001g), monitor, PC
Required accessoriesAutoloader (for 36 or 130 crucibles)
Optional accessoriesTIC module, voltage stabilizer 5 KVA

FUNCTION PRINCIPLE

Operation CHS-580A

In the CHS-580A the samples are weighed into crucibles. Then a gripper places the samples from the Autoloader on the pedestal. The samples are loaded consecutively into the furnace for combustion. The average analysis time is 60 to 180 seconds. Detector signals and instrument parameters are displayed during analysis. Evaluation of the signals and display of the results are done automatically; the data can be transferred to a laboratory information management system (LIMS). The analyzers require minimum maintenance. The particle filters and chemicals which need to be maintained are easily accessible.

Measuring Principle CHS-580A

In the CHS-580A analyzer the sample is burnt in an oxygen atmosphere at temperatures of up to 1,550 °C. The furnace temperature can be freely selected in steps of 1 °C. The combustion gasses (CO2, H2O, SO2) coming from the furnace first pass through a dust filter and then into the heated H2O infrared cell. After the water vapor is chemically absorbed, the dried CO2 and SO2 gas is detected in the additional infrared cells. Depending on the configuration, it is possible to combine up to four infrared cells with different sensitivities.

Content may be subject to modifications or corrections

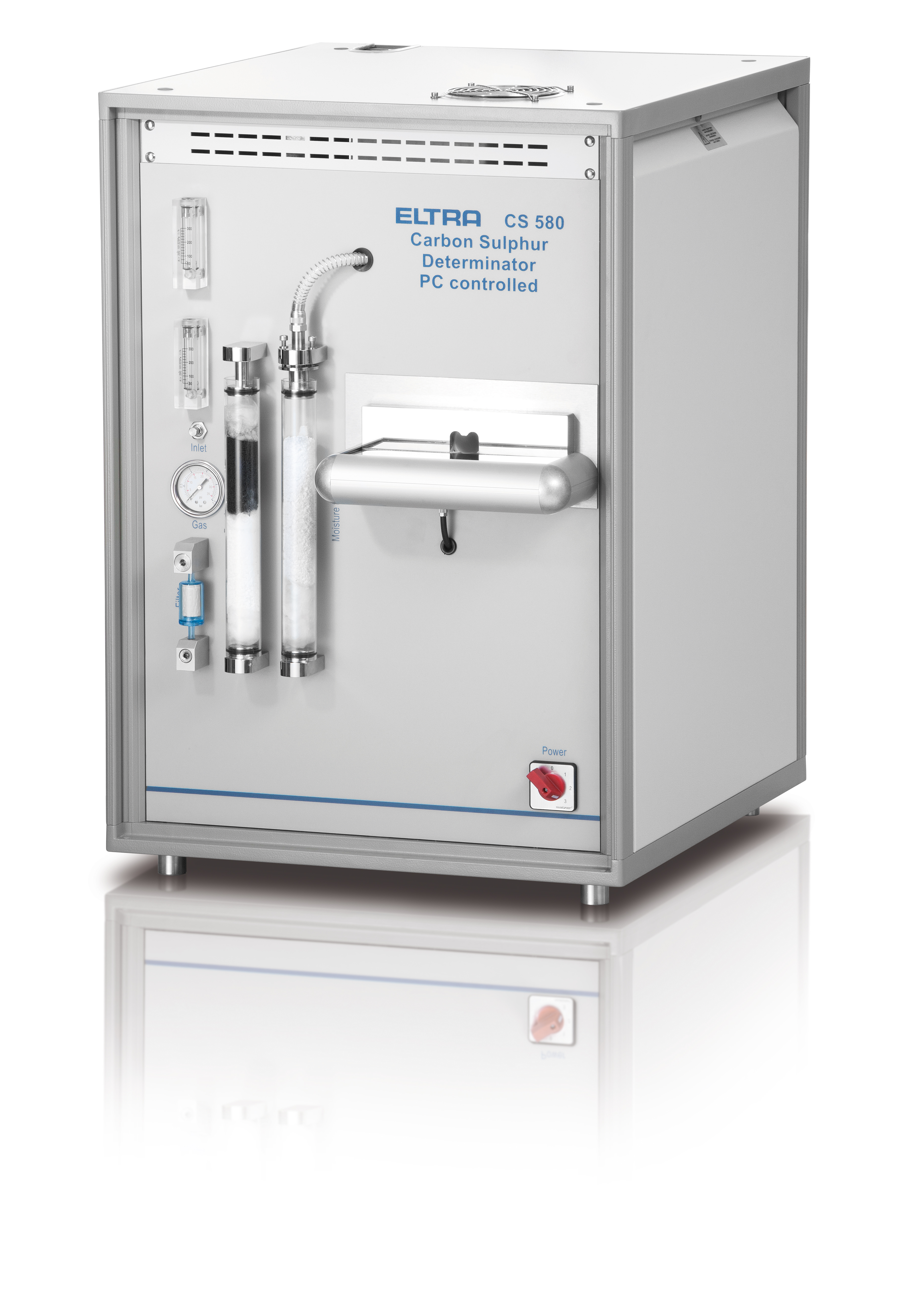

Eltra CS-580 Carbon Sulfur Analyzer for organic samples:

ELTRA CS-580 is ideal for the simultaneous determination of carbon and sulfur in organic samples.

Thanks to sample weights of 500 mg and more, even inhomogeneous materials can be reliably analyzed. The temperature of the powerful horizontal resistance furnace with ceramic tube can be set in steps from 1 °C to a maximum of 1,550 °C.

The analyzer can be equipped with up to four independent infrared cells according to the user‘s requirements, allowing for a great variety of applications.

APPLICATION EXAMPLES

ashes, building materials, coal, coke, gypsum, limestone, oil, plant materials, rubber, sand, soils, soot, tobacco, waste, ...

PRODUCT ADVANTAGES

  • simultaneous carbon and sulfur determination with minimal sample preparation
  • wide range of organic materials can be analyzed
  • rapid, precise, accurate and reliable element determination
  • resistance furnace can be set up to 1550 °C in steps of 1 °C
  • customized infrared cells provide wide, dynamic measuring range
  • due to gold IR path, increased cell live time for analysis of halogen or acid containig samples
  • powerful software (multilingual, customized display, export of results)
  • single and multipoint calibration
  • simultaneous calibration of carbon and sulfur
  • low maintenance
  • robust design allows usage in production control and laboratory

FEATURES

Measured elementscarbon, sulfur
Samplesorganic
Furnace alignmenthorizontal
Sample carrierceramic boats
Field of applicationagriculture, biology, chemistry / plastics, coal / power plant, construction materials, environment / recycling, medicine / pharmaceuticals
Furnaceresistance furnace (ceramic tube), adjustable up to 1550 °C (steps of 1 °C)
Detection methodsolid state infrared absorption
Number of IR cells1 - 4
Material of IR pathgold
Typical analysis time60 - 120 s
Chemicals requiredmagnesium perchlorate, sodium hydroxide
Gas requiredoxygen 99.5 % pure (2 - 4 bar / 30 - 60 psi)
Power requirements230 V, 50/60 H, max. heating up current 20 A
Dimensions (W x H x D)55 x 80 x 60 cm
Weight~ 70 kg
Required equipmentbalance (resolution 0.0001g), monitor, PC
Optional accessoriessupport for low carbon measurement, TIC module, voltage stabilizer 5 KVA

FUNCTION PRINCIPLE

Operation Carbon / Sulfur Analyzer CS-580

After weighing the sample in a ceramic boat, the weight is transferred from the interfaced balance to the PC. If required, sample weights can also be entered manually. Then the ceramic boat is introduced into the furnace for combustion. The average analysis time is 60 to 120 seconds. The detector signals and instrument parameters are displayed during analysis. Evaluation of the signals and display of the results are done automatically; the data can be transferred to a laboratory information management system (LIMS). The CS-580 requires minimum maintenance. The particle filters and chemicals which need to be maintained are easily accessible.

Measuring Principle Carbon / Sulfur Analyzer CS-580

In the CS-580 the sample is burnt in an oxygen atmosphere at temperatures up to 1,550 °C. The furnace temperature can be freely selected in steps of 1 °C. The combustion gasses (CO2, H2O, SO2) coming from the furnace and pass through a dust filter. After the water vapor is chemically absorbed, the dried CO2 and SO2 gas is detected in the additional infrared cells. Depending on the configuration, it is possible to combine up to four (for C, S analyzers) infrared cells with different sensitivities.

Content may be subject to modifications or corrections

Eltra CS-580A Helios Carbon Sulfur Analyzer for organic samples



Image result for eltra cs 580

ELTRA CS-580 analyzer  is ideal for the simultaneous determination of carbon and sulfur in organic samples.

Thanks to sample weights of 500 mg and more, even inhomogeneous materials can be reliably analyzed. The temperature of the powerful horizontal resistance furnace with ceramic tube can be set in steps from 1 °C to a maximum of 1,550 °C.

The analyzer can be equipped with up to four independent infrared cells according to the user‘s requirements, allowing for a great variety of applications.

APPLICATION EXAMPLES

ashes, building materials, coal, coke, gypsum, limestone, oil, plant materials, rubber, sand, soils, soot, tobacco, waste, ...

PRODUCT ADVANTAGES

  • simultaneous carbon and sulfur determination with minimal sample preparation
  • wide range of organic materials can be analyzed
  • rapid, precise, accurate and reliable element determination
  • resistance furnace can be set up to 1550 °C in steps of 1 °C
  • customized infrared cells provide wide, dynamic measuring range
  • due to gold IR path, increased cell live time for analysis of halogen or acid containig samples
  • powerful software (multilingual, customized display, export of results)
  • single and multipoint calibration
  • simultaneous calibration of carbon and sulfur
  • low maintenance
  • robust design allows usage in production control and laboratory

FEATURES

Measured elementscarbon, sulfur
Samplesorganic
Furnace alignmenthorizontal
Sample carrierceramic boats
Field of applicationagriculture, biology, chemistry / plastics, coal / power plant, construction materials, environment / recycling, medicine / pharmaceuticals
Furnaceresistance furnace (ceramic tube), adjustable up to 1550 °C (steps of 1 °C)
Detection methodsolid state infrared absorption
Number of IR cells1 - 4
Material of IR pathgold
Typical analysis time60 - 120 s
Chemicals requiredmagnesium perchlorate, sodium hydroxide
Gas requiredoxygen 99.5 % pure (2 - 4 bar / 30 - 60 psi)
Power requirements230 V, 50/60 H, max. heating up current 20 A
Dimensions (W x H x D)55 x 80 x 60 cm
Weight~ 70 kg
Required equipmentbalance (resolution 0.0001g), monitor, PC
Optional accessoriessupport for low carbon measurement, TIC module, voltage stabilizer 5 KVA

FUNCTION PRINCIPLE

Operation Carbon / Sulfur Analyzer CS-580

After weighing the sample in a ceramic boat, the weight is transferred from the interfaced balance to the PC. If required, sample weights can also be entered manually. Then the ceramic boat is introduced into the furnace for combustion. The average analysis time is 60 to 120 seconds. The detector signals and instrument parameters are displayed during analysis. Evaluation of the signals and display of the results are done automatically; the data can be transferred to a laboratory information management system (LIMS). The CS-580 requires minimum maintenance. The particle filters and chemicals which need to be maintained are easily accessible.

Measuring Principle Carbon / Sulfur Analyzer CS-580

In the CS-580 the sample is burnt in an oxygen atmosphere at temperatures up to 1,550 °C. The furnace temperature can be freely selected in steps of 1 °C. The combustion gasses (CO2, H2O, SO2) coming from the furnace and pass through a dust filter. After the water vapor is chemically absorbed, the dried CO2 and SO2 gas is detected in the additional infrared cells. Depending on the configuration, it is possible to combine up to four (for C, S analyzers) infrared cells with different sensitivities.

Content may be subject to modifications or corrections

Eltra CW-800 carbon/CO2/Water Analyzer



Determination of released carbon dioxide and water is a special requirement for quality control in the cement and lime industry. ELTRA’s CW-800 analyzer is designed for the precise, simultaneous determination of carbon dioxide and water in lime, gypsum and cement from trace level up to 100 % (depending on sample weight). Other sample materials include ores, soil and minerals.

The CW-800 is equipped with a resistance furnace with quartz tube for sample oxidation and can provide temperatures up to 1000 °C. The temperature of the CW-800 can be set up in steps of 1 °C and the temperature is fixed during measurement. As common carrier gas in the CW-800 nitrogen is used.

The detection system of ELTRA’s CW-800 is very sensitive, reliable and guarantees a long lifetime. It can be customized according to the user’s requirements. Two infrared cells can be combined independently and allow highly precise measurement of CO2 and H2O.

APPLICATION EXAMPLES

cement, gypsum, limestone, minerals, ores, soil, ...

PRODUCT ADVANTAGES

  • simultaneous carbon dioxide and water determination with minimal sample preparation
  • rapid, precise, accurate and reliable element determination
  • wide range of materials can be analyzed
  • resistance furnace temperature can be set up to 1000 °C in steps of 1° C
  • customized infrared cells provide wide, dynamic measuring range
  • due to gold IR path, increased cell live time for analysis of halogen or acid containig samples
  • powerful software (multilingual, customized display, export of results)
  • single and multipoint calibration
  • no halogen trap required
  • electronic gas flow control
  • low maintenance
  • robust design allows usage in production control and laboratory

FEATURES

Measured elementscarbon dioxide, water
Furnace alignmenthorizontal
Sample carrierquartz boats
Field of applicationconstruction materials, environment / recycling, geology / mining
Furnaceresistance furnace with quartz tube, adjustable up to 1000 °C
Process of measurementfixed temperature, fixed carrier gas, no changing during measurement
Detection methodsolid state infrared absorption
Number of IR cells1 - 2
Material of IR pathgold
Typical analysis time2 - 3 min
Chemicals requiredmagnesium perchlorate, sodium hydroxide
Gas requirednitrogen 99.995 % pure (2 - 4 bar / 30 - 60 psi)
Power requirements230 V, 50/60 Hz, max. 10 A, 2300 W
Dimensions (W x H x D)55 x 80 x 60 cm
Weight~ 65 kg
Required equipmentbalance (resolution 0.0001g), monitor, PC
Optional accessoriesvoltage stabilizer 5 KVA

FUNCTION PRINCIPLE

Operation of the CW-800 analyzer is simple and convenient. The temperature of the CW-800 is set up to defined temperature up to 1000 °C. After weighing the sample in a quartz boat, it is placed on the loading mechanism of the furnace. In the following, the analysis can be started and the boat is introduced into the furnace by the user. Depending on the applied temperature, residual or crystallization water and CO2 (from CaCO3) is released from the sample and determined by the infrared cells.

All data processing, control of the combustion process and calculating of the result is done by an external PC. The simultaneous determination of carbon dioxide and water only takes about 2 to 3 minutes.

Content may be subject to modifications or corrections

eltra Model SurfaceC-800 Surface Carbon Analyzer

Determination of surface carbon is a special requirement for quality control in the metal producing and metal working industry. ELTRA’s SurfaceC-800 analyzer is designed for the precise determination of surface carbon in numerous kinds of solid samples from trace level up to 1000 µg/cm2.

The SurfaceC-800 is equipped with a resistance furnace with quartz tube for sample oxidation and can provide temperatures up to 1000 °C. The temperature of the SurfaceC-800 can be set up in steps of 1 °C. As common carrier gas in the SurfaceC-800 oxygen is used.

The detection system of ELTRA’s SurfaceC-800 is very sensitive, reliable and guarantees a long lifetime. It can be customized according to the user’s requirements. It is possible to combine two infrared cells independently to allow for highly precise measurement of surface carbon from trace level up to large amounts.

APPLICATION EXAMPLES

aluminum, ceramics, metals, surface carbon on steel

PRODUCT ADVANTAGES

  • surface carbon determination with minimal sample preparation
  • large sized samples can be measured (up to 32 x 145 mm)
  • rapid, precise, accurate and reliable element determination
  • wide range of materials can be analyzed
  • resistance furnace temperature can be set up to 1000 °C in steps of 1 °C
  • customized infrared cells provide wide, dynamic measuring range
  • optional gold IR path for analysis of halogen or acid containing samples
  • calibration with standard materials or gas dose
  • special sample sluice for reduction of atmospheric blank
  • powerful software (multilingual, customized display, export of results)
  • single and multipoint calibration
  • electronic gas flow control
  • low maintenance
  • robust design allows usage in production control and laboratory

FEATURES

Measured elementscarbon
Samplesinorganic
Furnace alignmenthorizontal
Sample carrierquartz boats
Field of applicationceramics, steel / metallurgy
Furnaceresistance furnace with quartz tube, adjustable up to 1000 °C
Maximum sample size32 x 145 mm
Detection methodsolid state infrared absorption
Number of IR cells1 - 2
Material of IR pathaluminum (optional gold)
Typical analysis time60 - 90 s
Chemicals requiredmagnesium perchlorate, sodium hydroxide
Gas requiredoxygen 99.5 % pure (2 - 4 bar / 30 - 60 psi)
Power requirements230 V, 50/60 Hz, max. 10 A, 2300 W
Dimensions (W x H x D)55 x 80 x 60 cm
Weight~ 65 kg
Required equipmentbalance (resolution 0.0001g), monitor, PC
Optional accessoriesvoltage stabilizer 5 KVA

FUNCTION PRINCIPLE

Operation of the SurfaceC-800 is simple and convenient. The temperature of the SurfaceC-800 is set up to defined temperature up to 1000 °C. After entering the sample surface size in the PC, the sample is placed in a quartz boat. In the following the analysis can be started and the sample boat is pushed from the open end of the combustion tube into the hot zone of the furnace.

The combustion gas is led through a copper oxide catalyst and the formed CO2 is determined by the infrared cells. All data processing, control of the combustion process and calculating of the result is done by an external PC. The COdetermination only takes about 60 up to 90 seconds.

Content may be subject to modifications or corrections

This is a blog component, you do not currently have any posts to display. You can write your first post, import posts from another service or delete the component.
